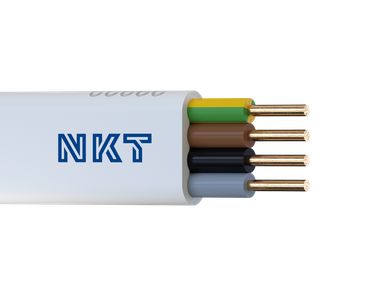

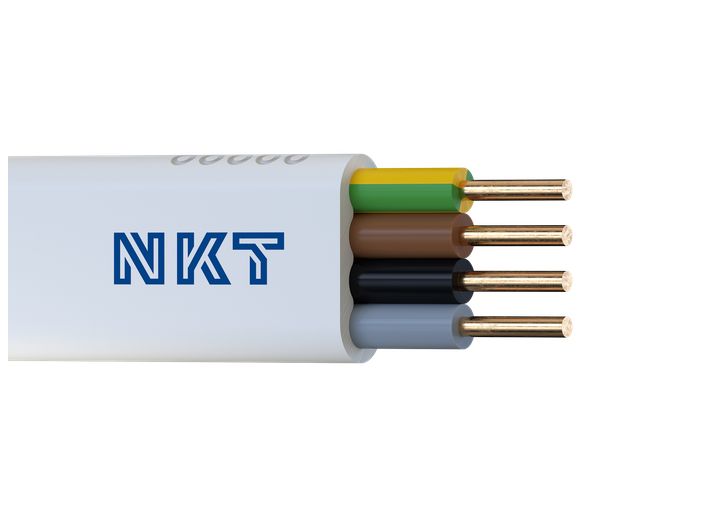

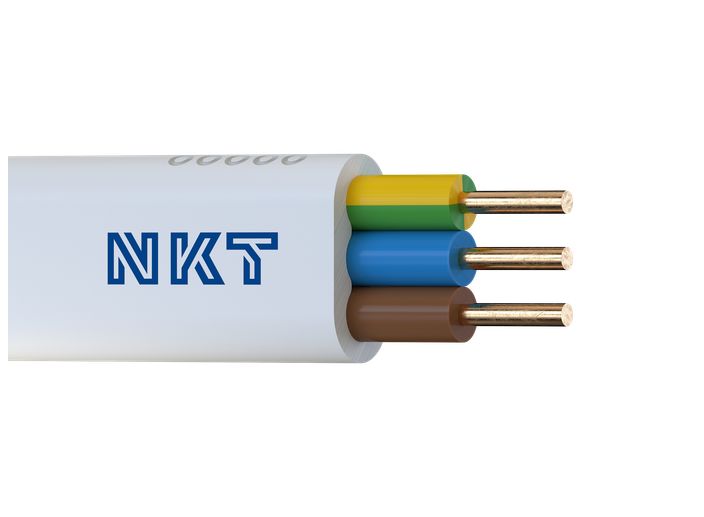

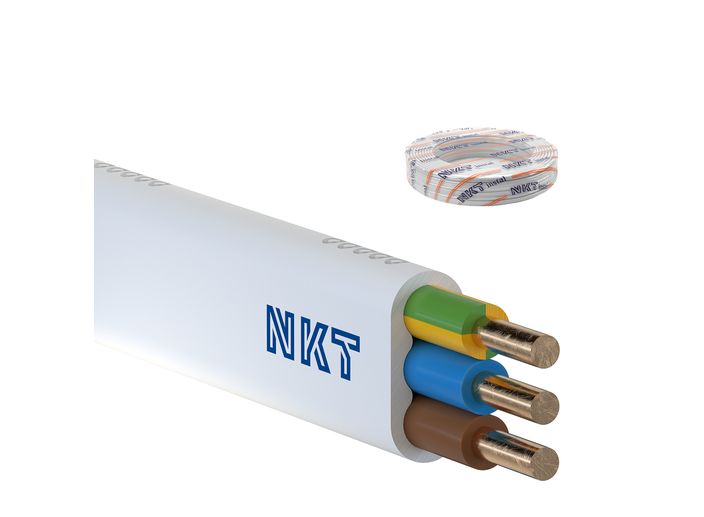

NKT instal YDYp 450/750 V

NKT instal YDYp 450/750 V is the best choice for fixed installations, offering exceptional reliability and fast installation. The vacuum extruded coating allows for easy handling of the cable and quick installation.

Key features:

· Voltage: 450/750 V

· Temperature range: -40°C to +70°C (max. conductor temperature: +70°C, in case of short circuit: +160°C)

· Min. laying temperature: -5°C

· Min. bending radius: 4d,

· Compliance: PN-E-90068, RoHS, REACH

Application:

Ideal for fixed installations indoors under, in and on plaster. Suitable for residential, commercial and industrial projects.

Construction:

· Conductor: Copper class 1

· Insulation: PVC

· Outer sheath: White PVC

Technical specifications:

· Cross-section range: (2÷5)x(1÷10) mm²

· Insulation thickness: from 0.8 mm to 1.1 mm

· Outer sheath thickness: from 1.2 mm to 1.3 mm

· Outer diameter: from 5.0x7.6 mm to 8.2x30.6 mm

· Cable weight: from 63 kg/km to 703 kg/km

Upgrade your installations with NKT install YDYp 450/750 V for the highest quality and performance. Available below: data sheet, DoP declaration, CE declaration, EPD environmental declaration, certificate.
